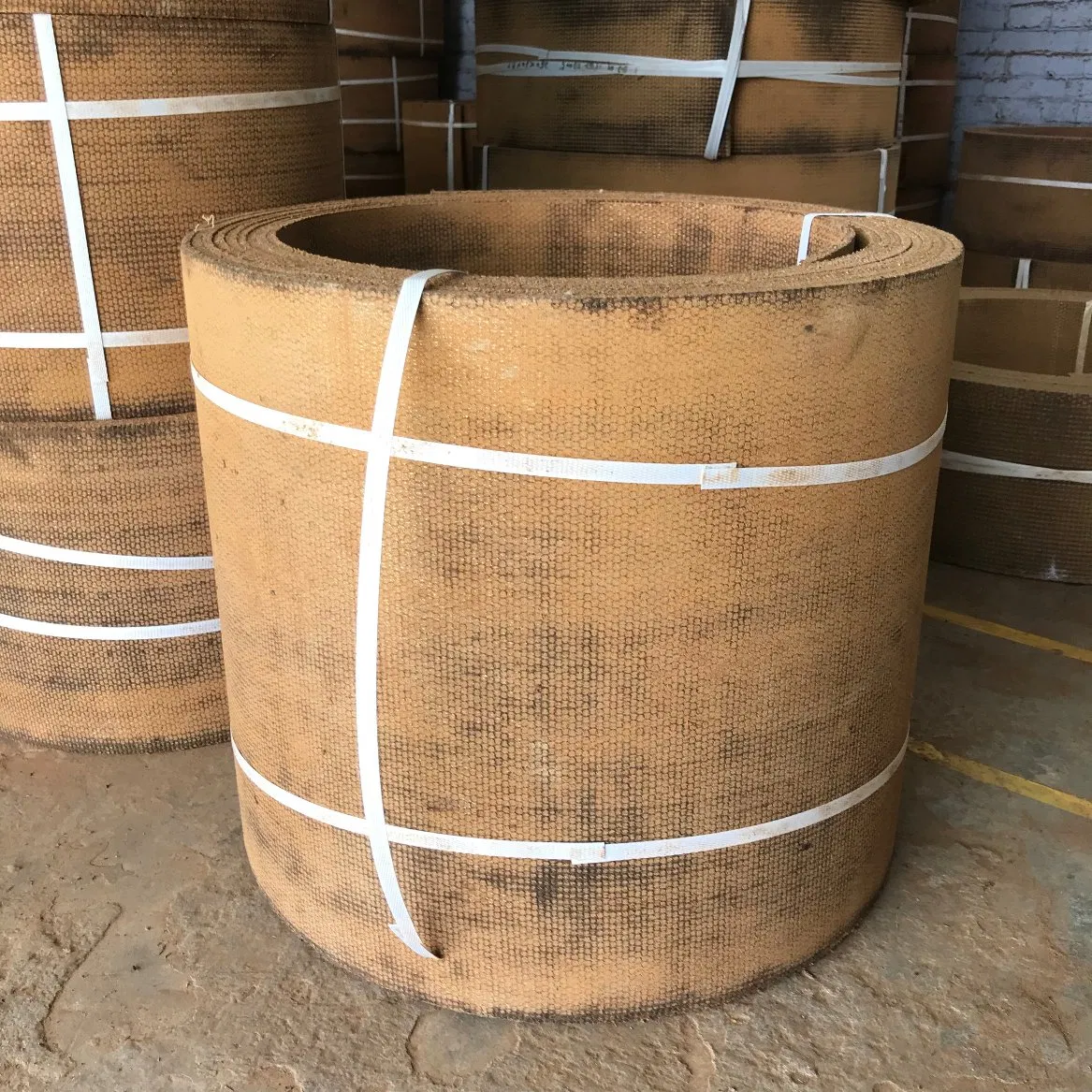

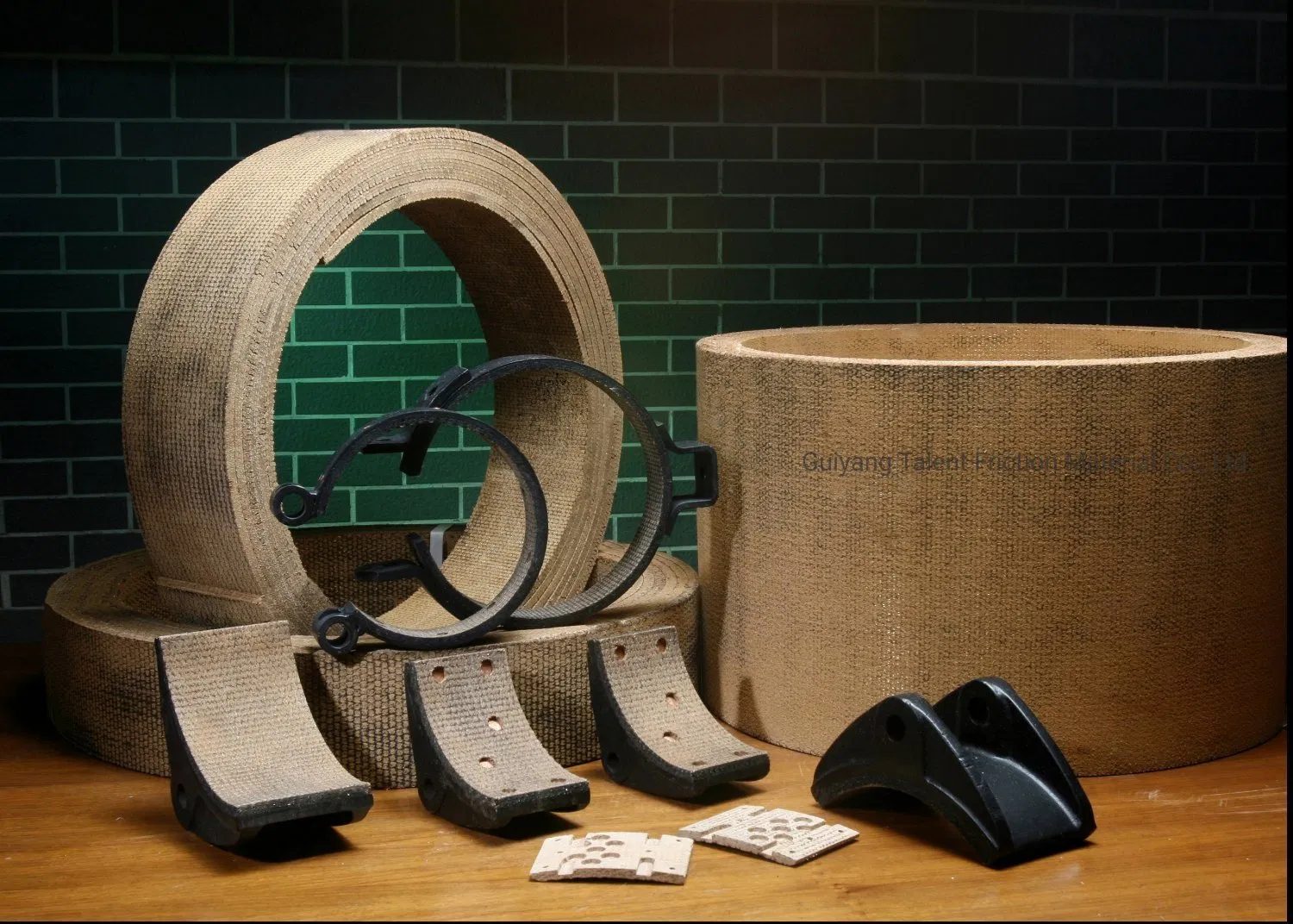

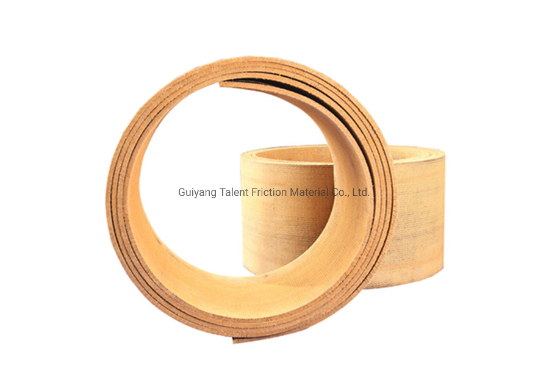

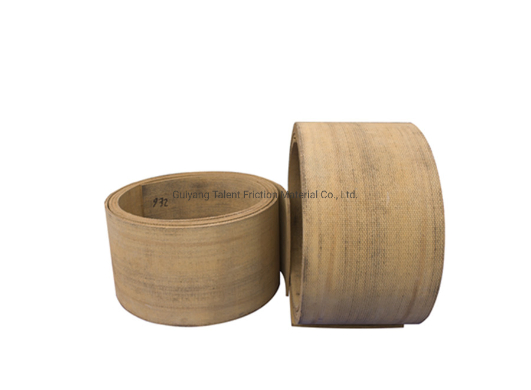

Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
1 / 5
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery
Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery

Yellow Color Resin Based with Copper Wire Woven Brake Lining Roll for Crane, Hoist, Deck Machinery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
TL2003
Position
Winch
Certification
ISO/TS16949, IATF-16949, ISO9001
Classification
Brake
Main Market
North America, Southeast Asia, Western Europe
Applying for
Winch, Winchlass, Ship
Industry
Floating Crane, Deck Machinery, Tug Boat
Size
100*6mm
Transport Package
Pallet
Origin
China
Product Description
TL2003 is a semi-flexible Non Asbestos Brake Lining designed for medium and heavy duty applications. The solid composite is woven from several types of fabric containing brass wire and impregnated with specially developed resins. The dense, tough material exhibits high resistance to heat and wear and excellent stability under load. It is highly suitable for cast iron and steel working surfaces.
Technical Data & Dimensions
Frictional Properties Recommended Operating Range
Normal Friction 0.49 Max. Pressure: 250 psi
Hot Friction 0.50 Max. Rubbing Speed: 5000 ft/min
400°F Friction 0.48 Max. Intermittent Temp: 650°F (340°C)
Max Width 510mm (20 inches) Max. Continuous Temp: 600°F (315°C)
Thickness Range 3.2mm - 25.4mm Standard Length: 10 Meters
Product Gallery

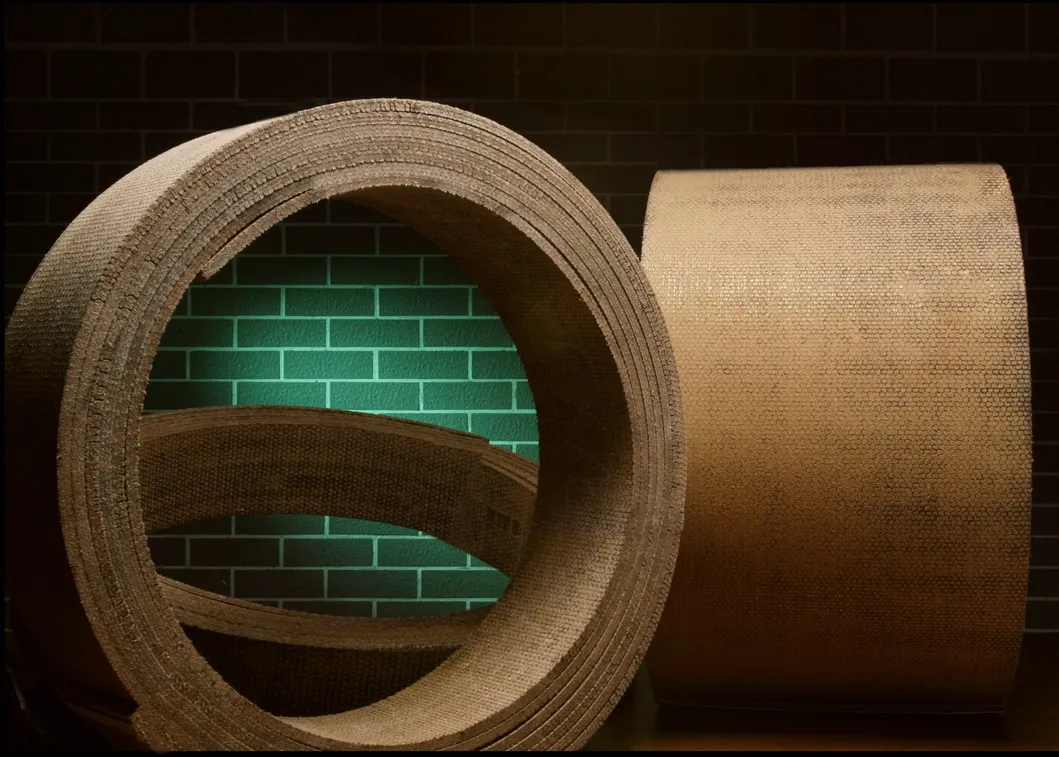

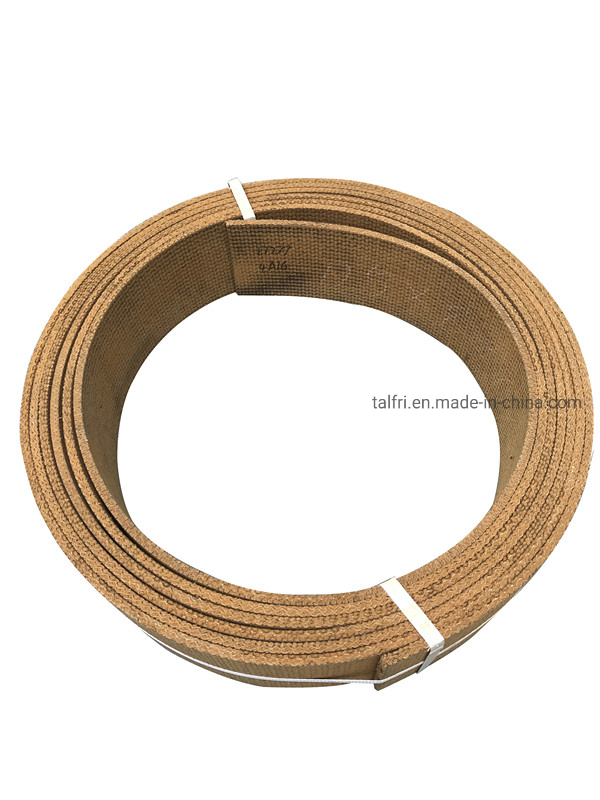

Woven Brake Lining Roll

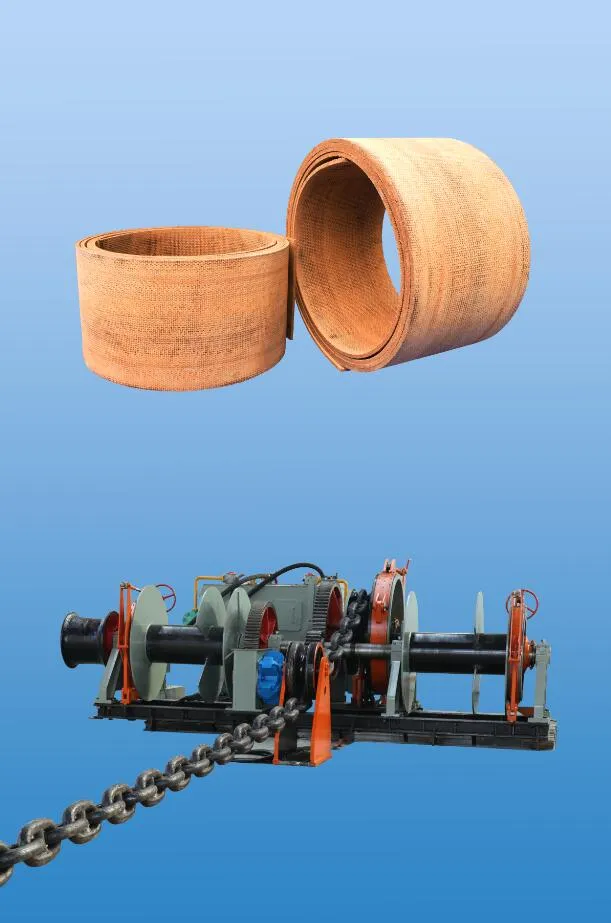

Brake Lining Detail

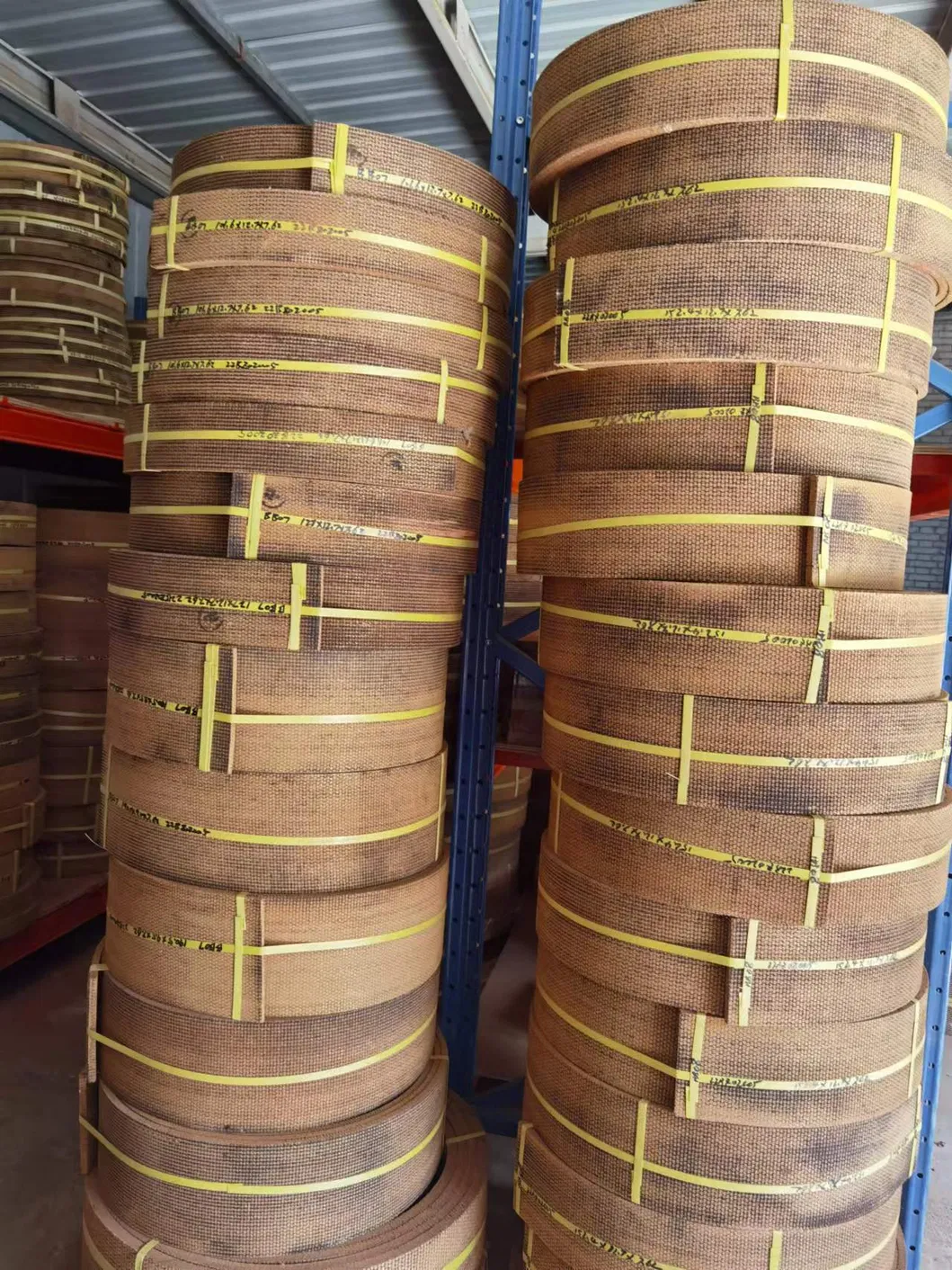

Yellow Resin Based Brake Lining

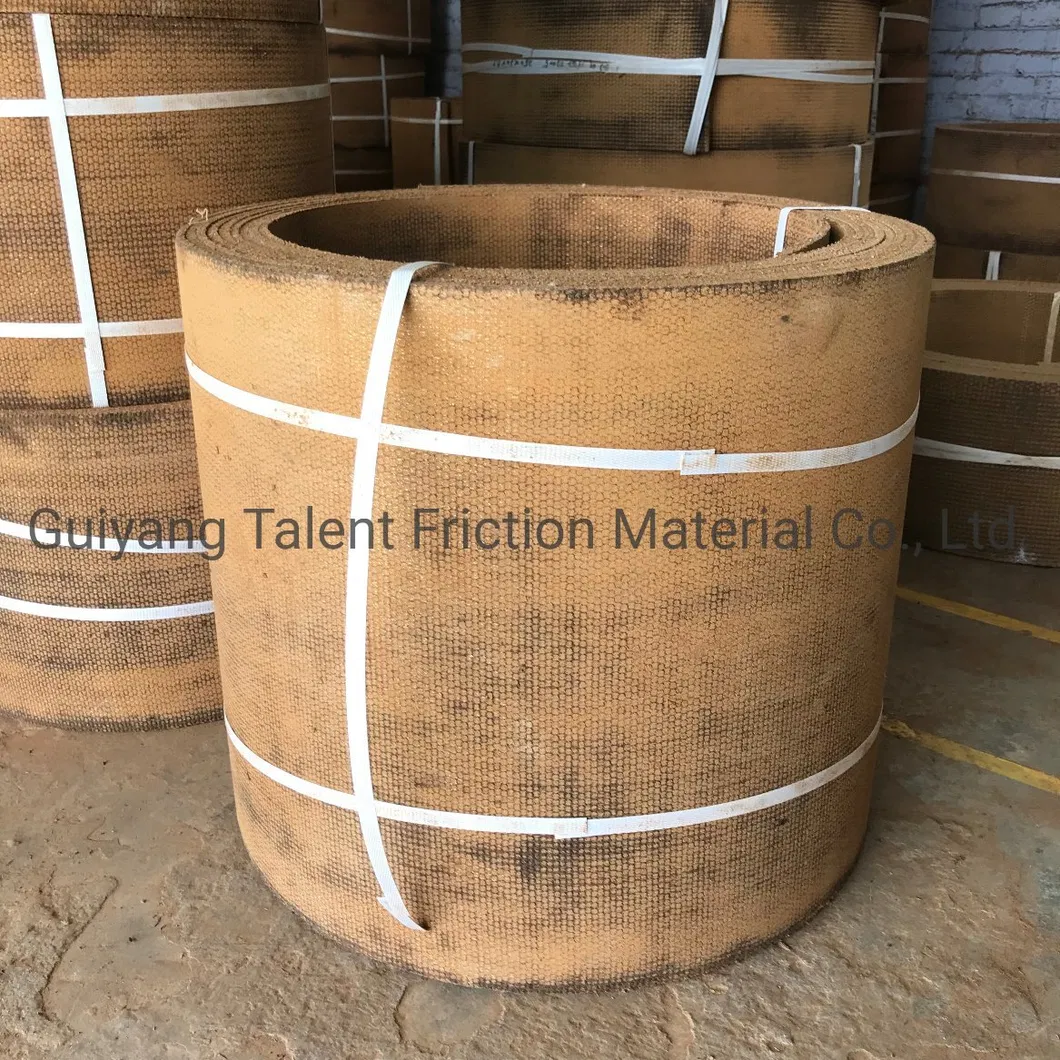

Crane Brake Lining

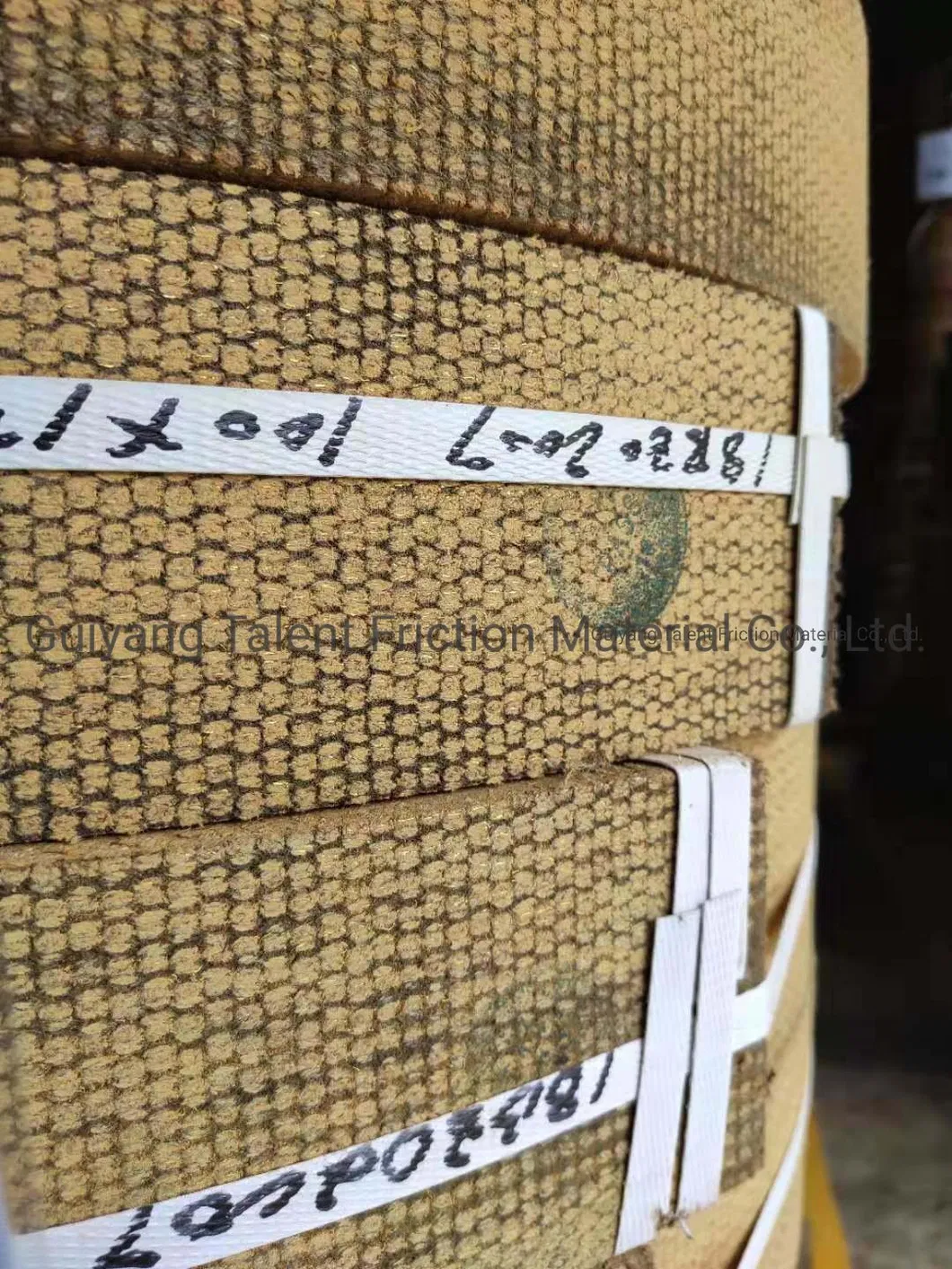

Deck Machinery Brake Lining
Frequently Asked Questions
What materials are used in the TL2003 brake lining?
TL2003 is a non-asbestos solid composite woven from several fabric types containing brass wire and impregnated with specialized resins for durability.
What are the primary industrial applications for this product?
It is extensively used in marine winches, windlasses, hoists, cranes, drilling rigs, elevators, and various construction machinery.
Can TL2003 handle high temperatures during operation?
Yes, it has excellent heat resistance, with a maximum continuous temperature of 600°F (315°C) and intermittent peaks up to 650°F (340°C).
How does oil immersion affect its performance?
When used in oil-immersed applications, the friction value of TL2003 will be significantly lower compared to its performance in dry conditions.
What are the available size ranges for width and thickness?
The maximum width available is 510mm (20 inches), and the thickness ranges from 3.2mm to 25.4mm (1/8 to 1 inch).
Is this brake lining compatible with steel working surfaces?
Yes, TL2003 is specifically designed to be suitable for both cast iron and steel working surfaces.
