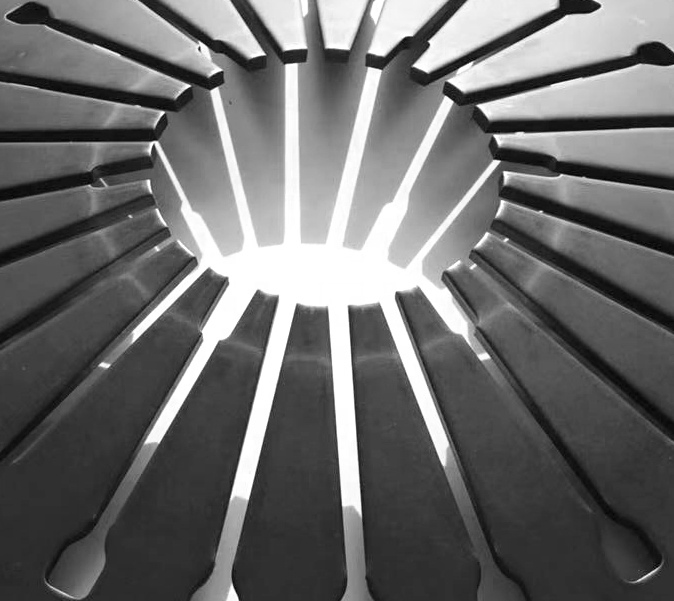

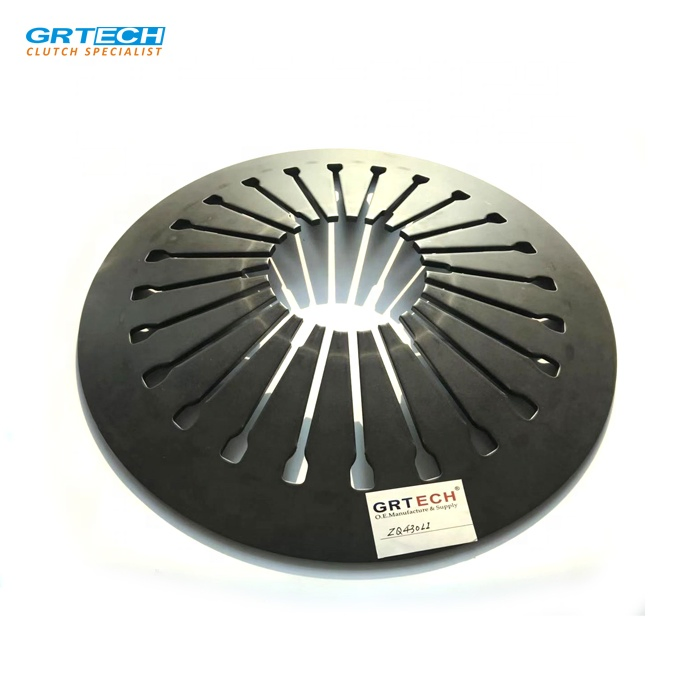

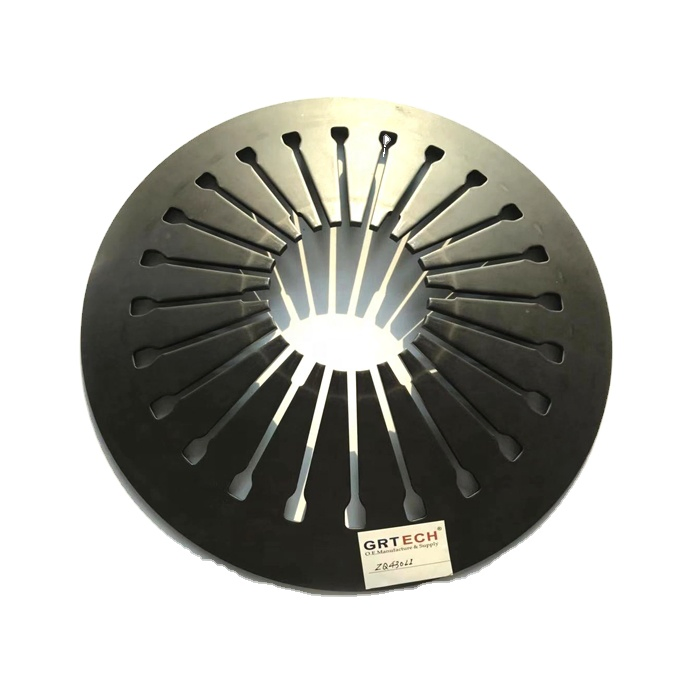

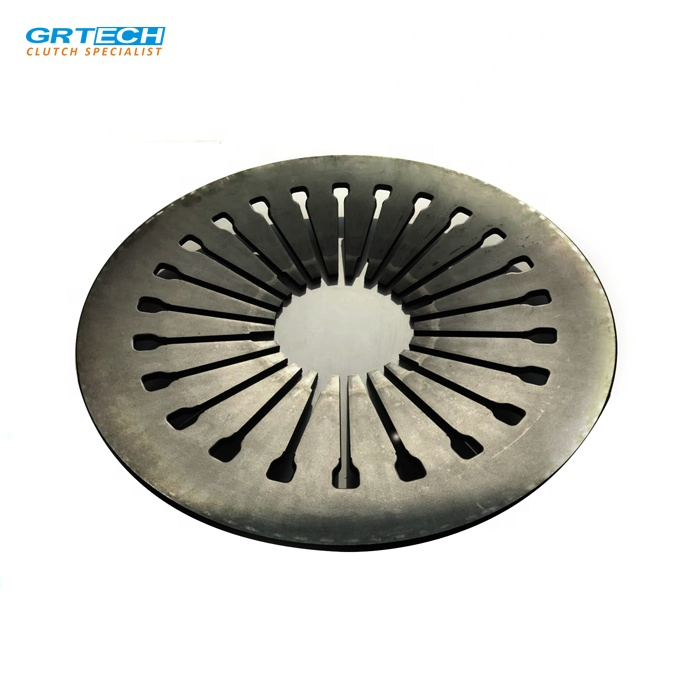

Clutch parts diaphragm spring for Truck 430

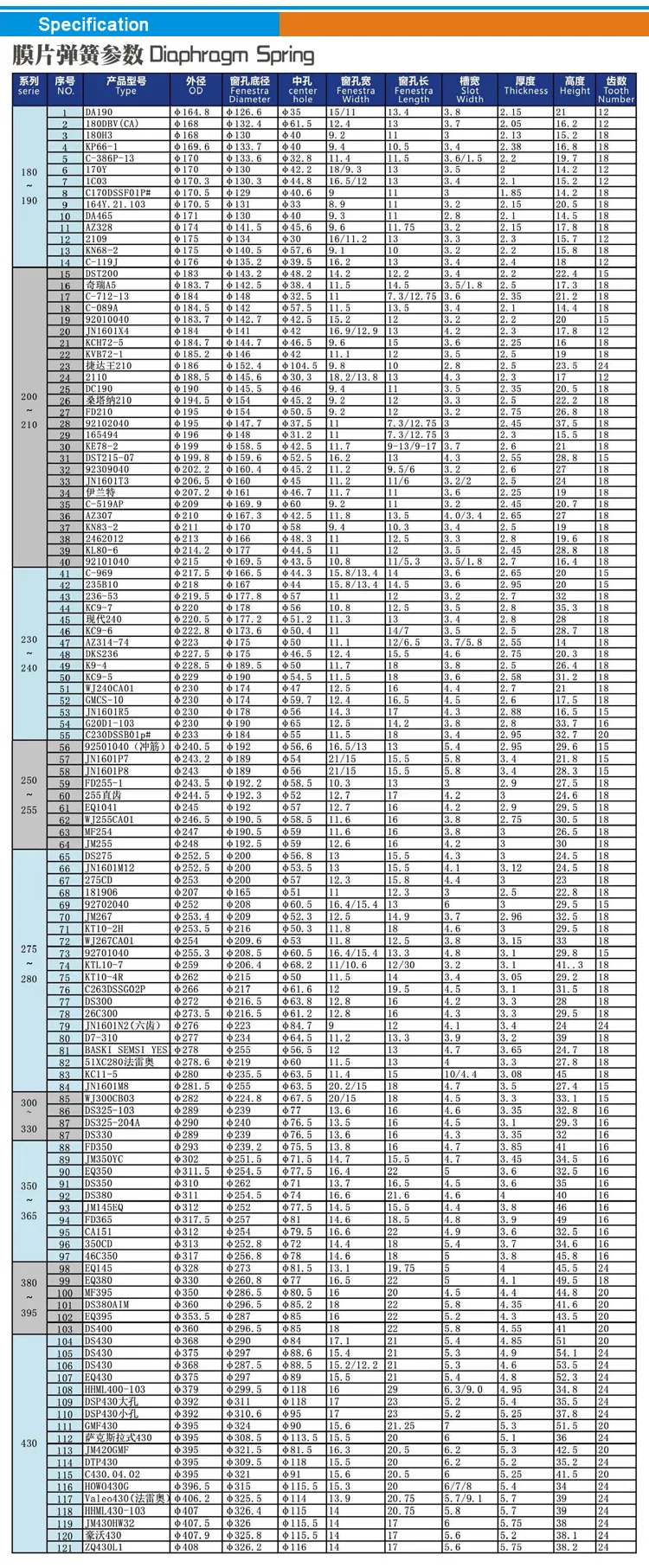

| Products and Supporting (Diaphragm Spring) | |
|---|---|
| Grade | 50CrV4, 51CrV4 |
| Specification | Diameter: ø160-430mm; Thickness: 1.8-5.8mm; Load: 3000-3600N |

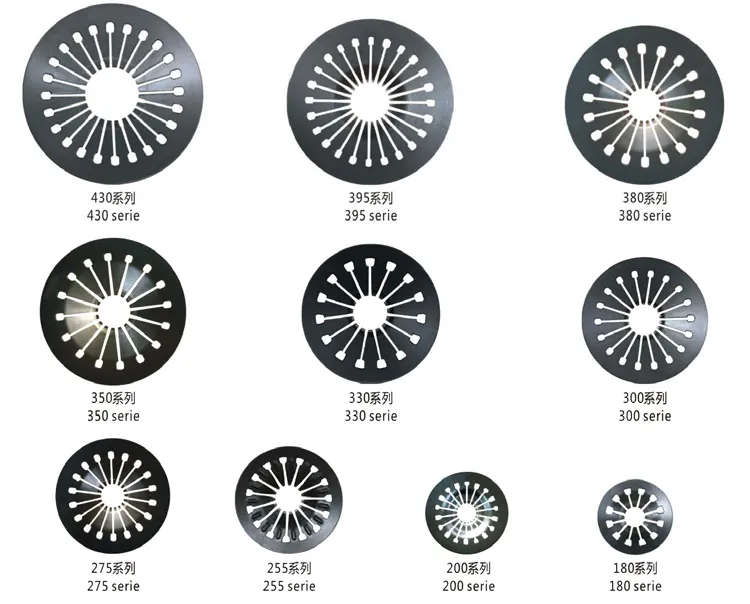

| Type | 180-430mm full series |
| Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Clutch pressure plate assembly for car, micro truck, light truck, medium truck, bus and heavy truck series |
| Products and Supporting (Driven Plate) | |
|---|---|
| Grade | 50CrV4, 65Mn, 08AI |
| Specification | Diameter: ø192-395mm; Thickness: 1.0-3.5mm |

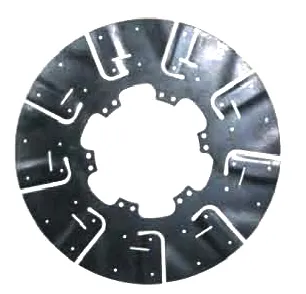

| Type | Wave sheet, Driven disc, Damping Disk, Damper series |
| Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Clutch driven plate series |
| Products and Supporting (Belleville Spring) | |
|---|---|
| Grade | 50CrV4, 51CrV4 |
| Specification | Diameter: ø152-355mm; Thickness: 2.2-4.40mm; Load: 3900-11600N |

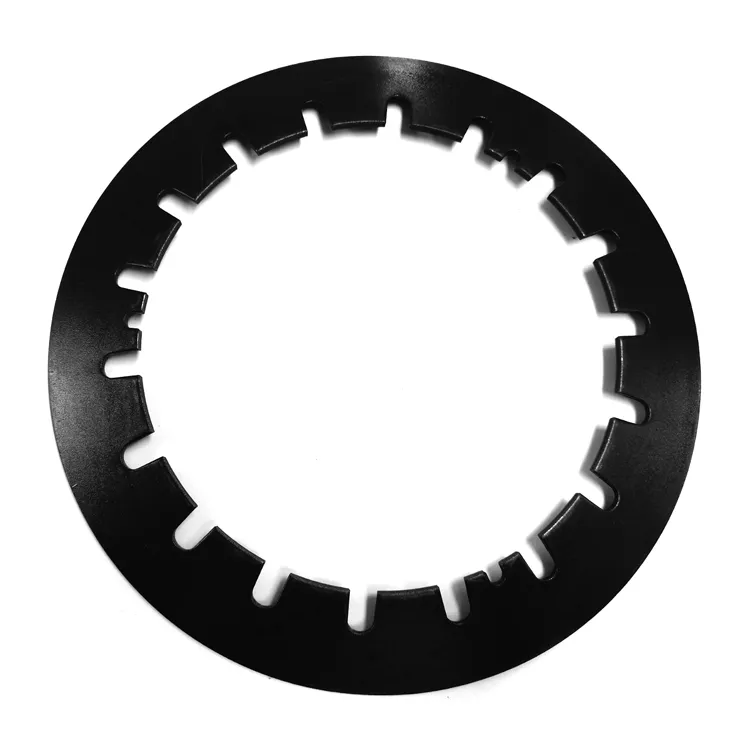

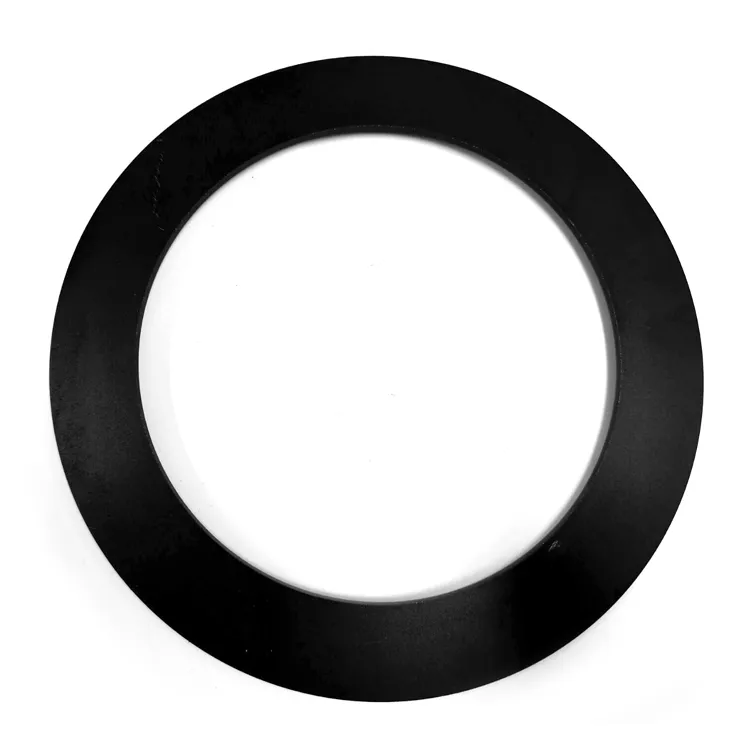

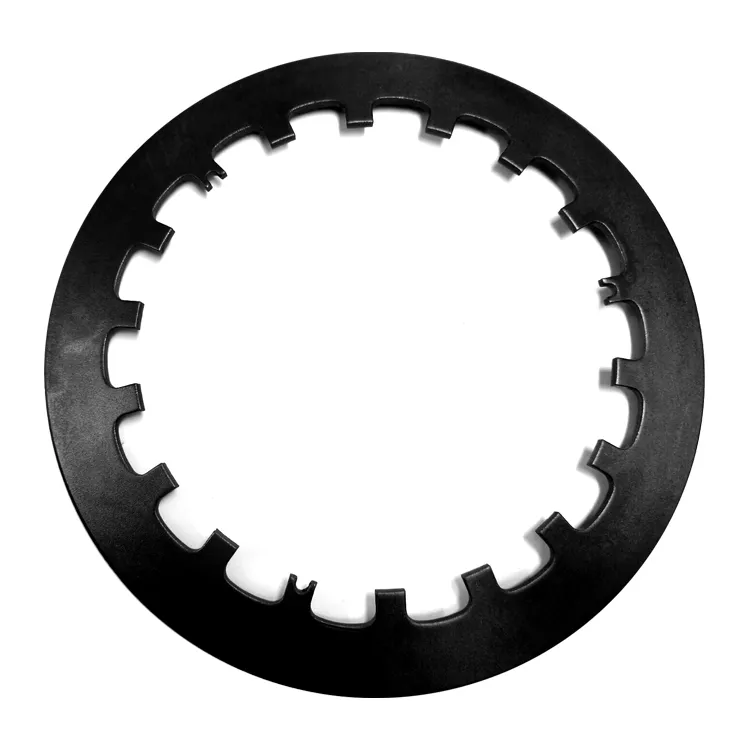

| Type | 6inch, 8inch, 10inch, 14inch |
| Standard | QC/T25-2004; QC/T27-2004 |
| Usage | Agricultural vehicles, corn machine clutch pressure plate assembly |
Specialized in developing and producing auto clutch parts including diaphragm springs, tractor belleville springs, and all kinds of engineering machinery internal-external gears. Our products hold a high reputation in the global market with guaranteed high quality.
The diaphragm spring parts are supplied to domestic famous truck groups and many OEM factories overseas. Custom development is available based on technical drawings and samples.
