a Variety of Different Tube Diameter Light Curing Repair

1 / 5

a Variety of Different Tube Diameter Light Curing Repair

Customization:	Available
Material:	Underwater Pipe
Small Light Holder:	Adapted Pipe Diameter:200-600mm

Send Inquiry

Product Description

Basic Info.

Model NO.

X120-UV

Big Light Hoder

600-1600mm

UV Binding Head

Stainless Steel

Temperature Classification

Medium Temperature Piping

Standard

ASTM, GB, API, DIN, JIS

Diameter

>720mm

Medium

Liquid

Cross-Section Shape

Round

Transport Package

Packed in Plywood Case

Specification

Main control: 1700mm*750mm*1270mm

Trademark

easysight

Origin

China

Production Capacity

50 Sets Per Month

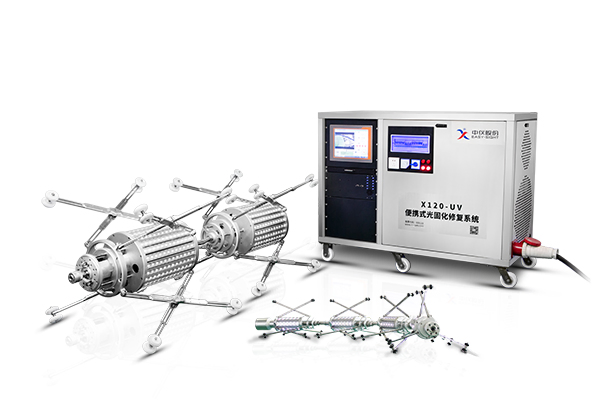

Portable Photocuring Repair System (Model: X120-UV)

Product Profile

X120-UV portable photo-curing repair system consists of mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens and auxiliary tools. It is mainly applicable to trenchless repair works of municipal pipe networks, with repair pipe diameters DN200-DN1600.

Produce Advantages

📦

Portability

Integrated design, high integration, power supply by generator only.

⚡

High Efficiency

Short curing time and high operational speed.

🌱

Energy Saving

LED curing technology, low energy consumption and zero pollution.

🛡️

Stability

Digital transmission, real-time monitoring, and automatic stabilization.

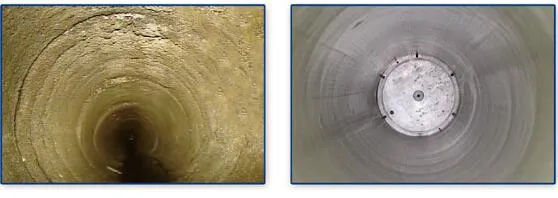

Repair Comparison: Precise, Efficient, Controllable

Technical Parameters

Component Name	Quantity	Technical Parameters and Instructions
Mobile Control System	1 Piece	Internal integrated control system, lamp rack, power supply, blast system, and cable tray. 15.1 inch touch screen. Embedded industrial control computer. Standard 150m cable. Size: 1700mm750mm1270mm. Weight: 320kg.

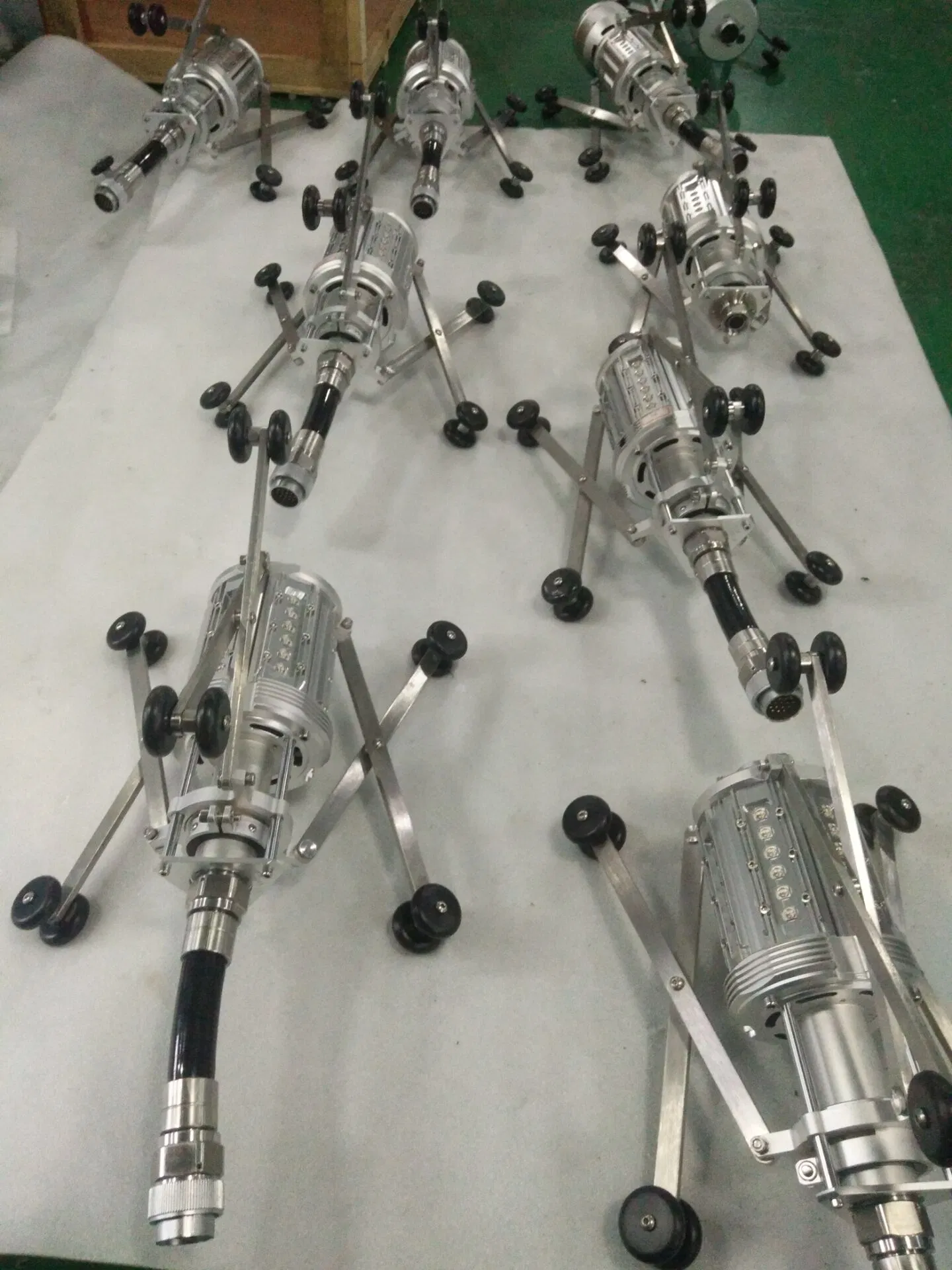

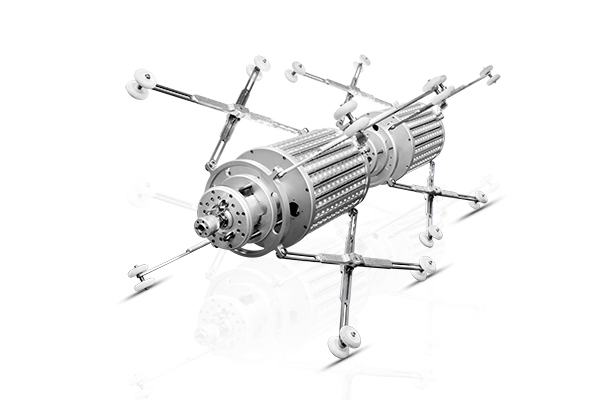

Small Lamp Holder	Section 4	Adaptive pipe diameter: DN200-DN600. LED light source with 50,000h life. Real-time temperature, pressure, and distance sensors.

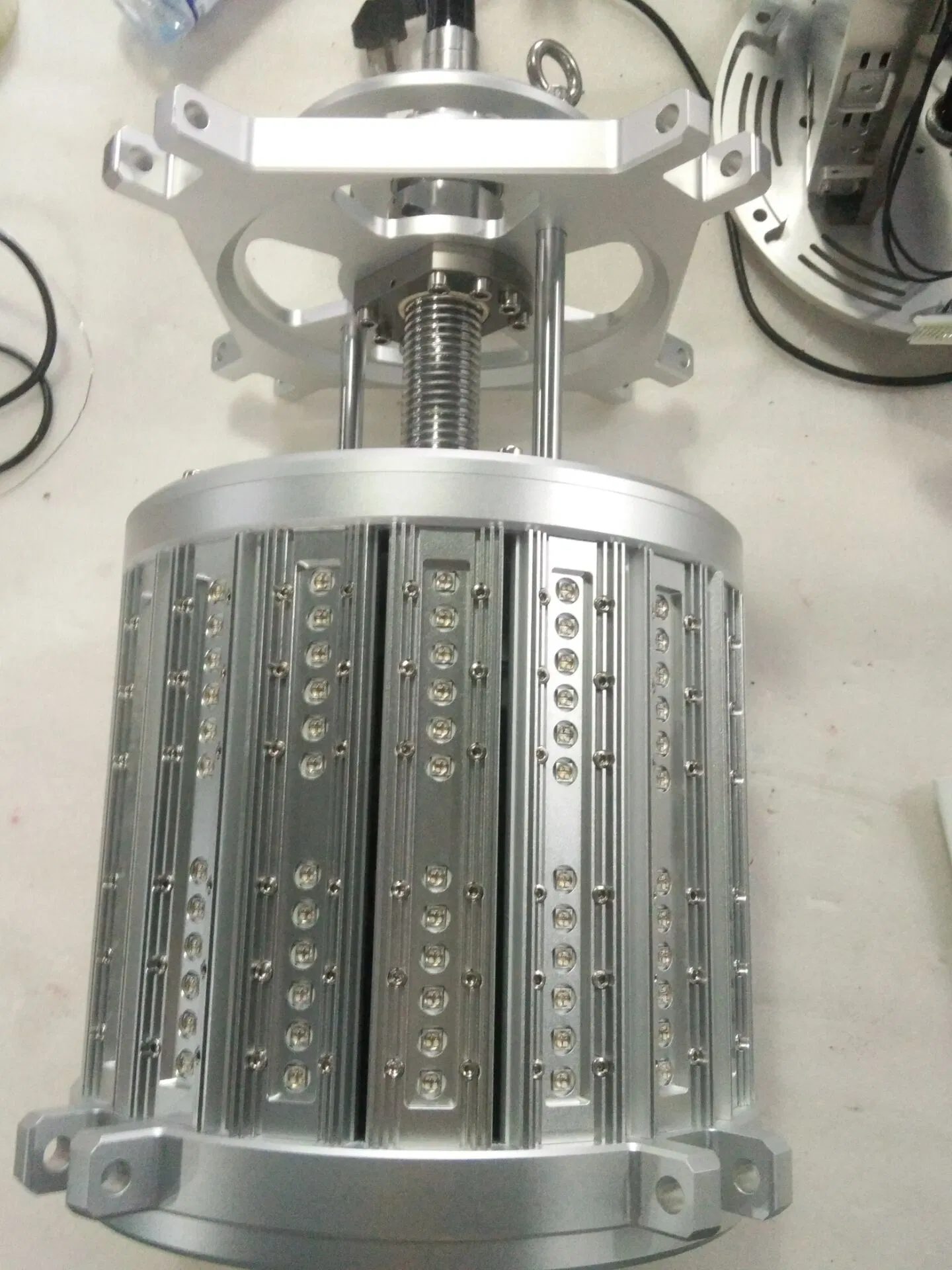

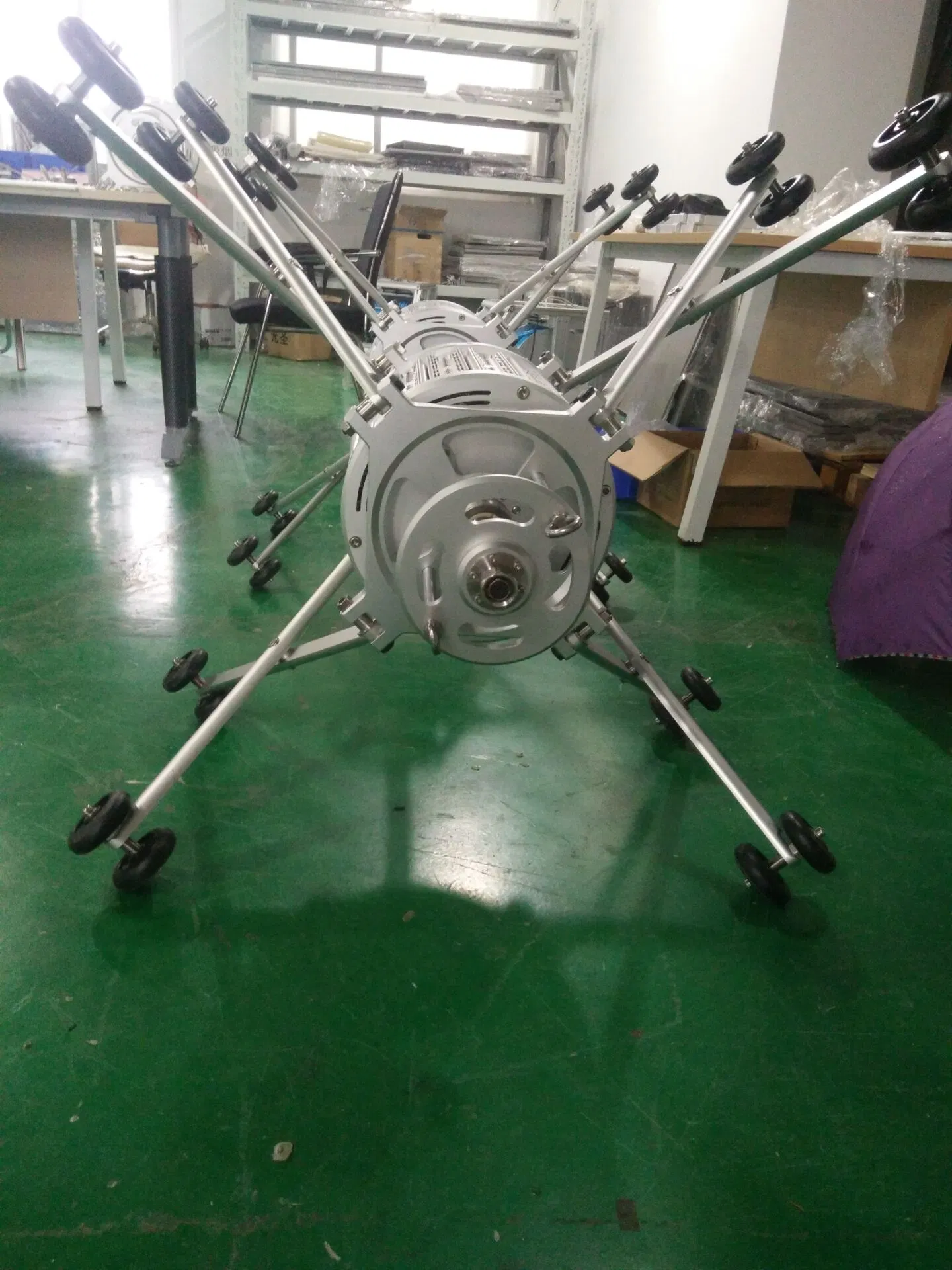

Large Lamp Holder	Section 2	Adaptive pipe diameter: DN600-DN1600. LED light source. Electric adjustment for pipe diameter adaptation.
Small Prick-head	10 Pieces	Stainless steel; DN200 to DN600 (2 each). Equipped with sealing ring for voltage stabilization.
Large Prick-head	8 Pieces	Stainless steel; DN800 to DN1600 (2 each). Equipped with sealing ring for voltage stabilization.
Direct View Lens	1 Piece	IP68 protection. 4 million pixels CMOS. Four 3W floodlight LEDs. Working temp: -10ºC ~ 50ºC.
Rotating Lens (Optional)	1 Piece	IP68 protection. 360 degrees unlimited rotation. 10x optical zoom. 4 million pixels.

Overseas Exhibition & Quality

Certificates & Packaging

Professional Service

✅ Warranty: 12 months warranty from arrival date at port of destination; lifelong maintenance.
✅ Technical Support: Efficient and environmentally friendly drainage network solutions.
✅ Quality Control: Every machine is strictly tested before packaging.
✅ Training: Detailed English operational manuals and training CDs provided. Free factory training available.
✅ OEM: Brand logo printing available free of charge.

Frequently Asked Questions

What's the standard package for shipping?

We use standard plywood packing cases. The machine is covered by foam for protection against shaking and a thickening plastic bag for waterproofing.

Will the package be damaged during transportation?

Our packaging considers all potential damage factors to ensure safety. Our shipping agents are highly experienced in safe transportation.

How do I install and run the machine?

Technicians install the machine before shipping. For small part installation, we provide detailed training videos and user manuals.

What should I do if the machine goes wrong?

What is the warranty and maintenance policy?

The warranty period is 12 months, and we offer lifelong maintenance. Replacement parts are provided free of charge if non-human damage occurs during warranty.

Is training available for the operation?

Yes, we provide an English version Operational Manual and Training CD. We also welcome you to our factory for free professional training.
