X120UV Perfect Repair of Underground Water Defect Pipeline

Customization:	Available
Diameter:	>720mm
Material:	Underwater Pipe

Send Inquiry

Product Description

Basic Info

Model NO.

X120UV

Small Light Holder

Adapted Pipe Diameter: 200-600mm

Big Light Holder

600-1600mm

UV Binding Head

Stainless Steel

Temperature

Medium Temperature Piping

Standard

ASTM, GB, API, DIN, JIS

Medium

Liquid

Cross-Section Shape

Round

Transport Package

Packed in Plywood Case

Specification

1700mm*750mm*1270mm

Production Capacity

50 Sets per Month

Product Profile

Portable Photocuring Repair System (Model: X120-UV)

The manufacturer is a hi-tech enterprise boasting drainage network maintenance, testing equipment, restoration technologies and materials, and a provider of efficient, environment-friendly and smart solution packages for urban drainage networks.

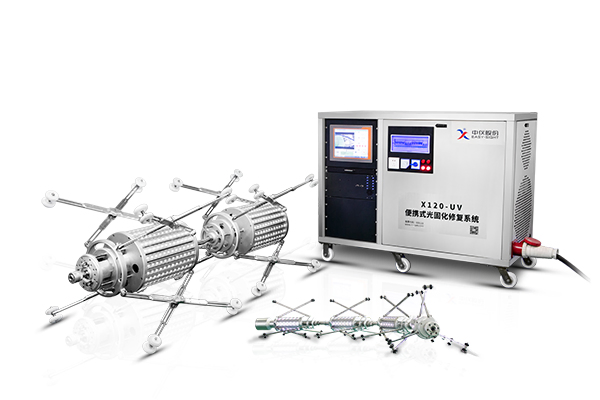

X120-UV portable photo-curing repair system consists of mobile control system, transmission cable, ultraviolet lamp holder, high-definition lens and auxiliary tools. It is mainly applicable to trenchless repair works of municipal pipe networks, with repair pipe diameters DN200-DN1600.

🚀

Portability

Integrated design, high integration, power supply by generator only.

⚡

High Efficiency

Short curing time and high speed.

🌱

Energy Saving

LED curing, low energy consumption and no pollution.

🛡️

Stability

Digital transmission, real-time monitoring, automatic stabilization.

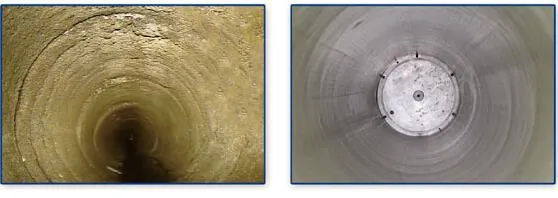

Comparison of Repair Results: Precise, Efficient, Controllable

Technical Parameters

Component	Qty	Technical Specifications
Mobile Control System	1 pc	380V Input, 15.1 inch touch screen, embedded industrial control, 150m standard cable length, integrated blast system, real-time video monitoring (1920*1080P).

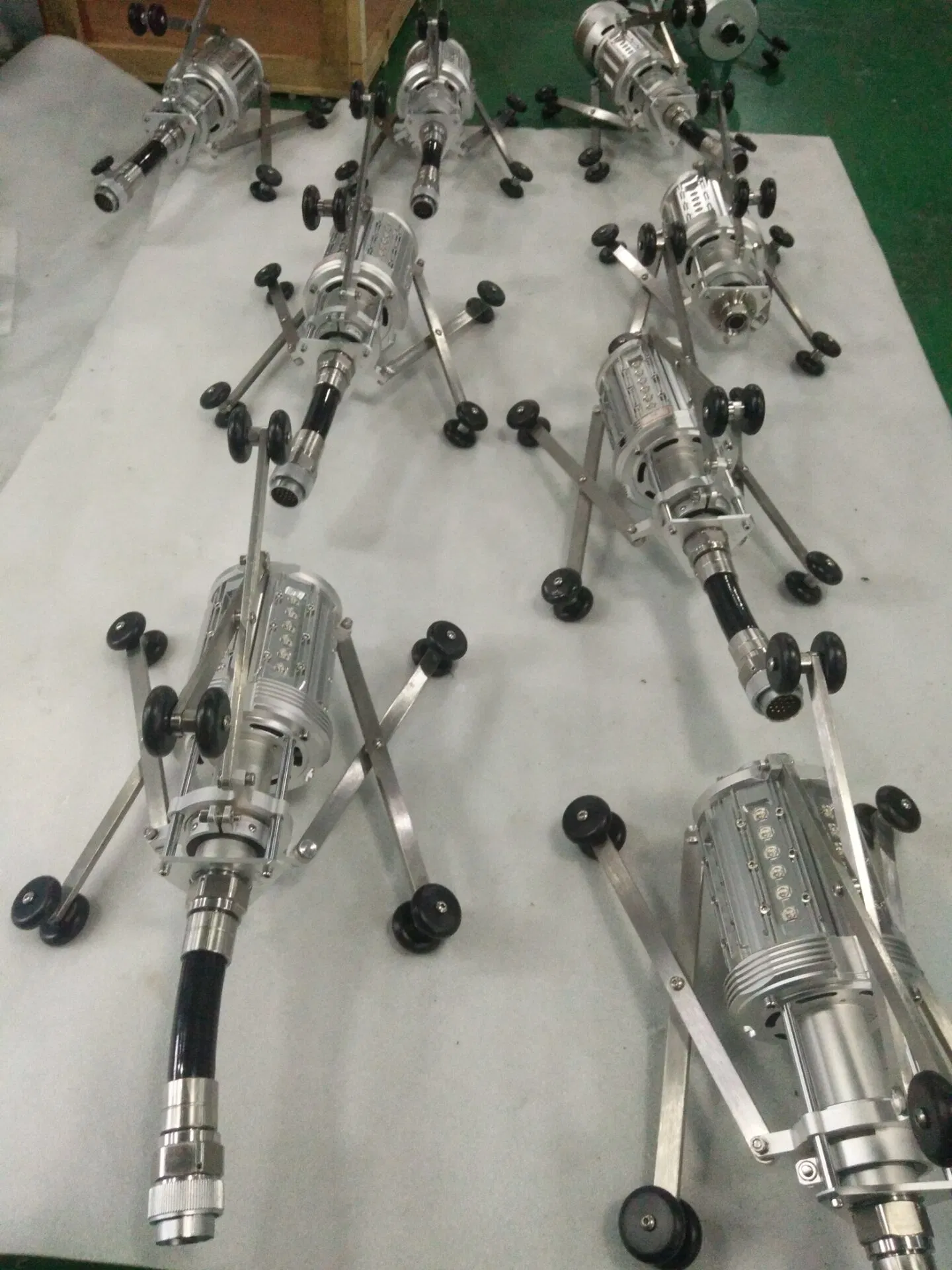

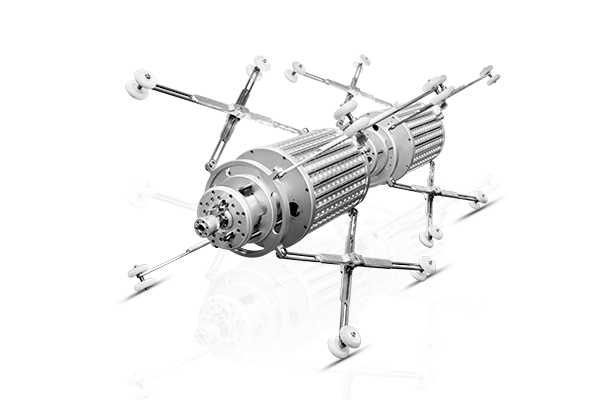

Small Lamp Holder	Section 4	DN200-DN600 adaptive pipe diameter, LED light source (50000h life), temperature/pressure/laser ranging sensors.

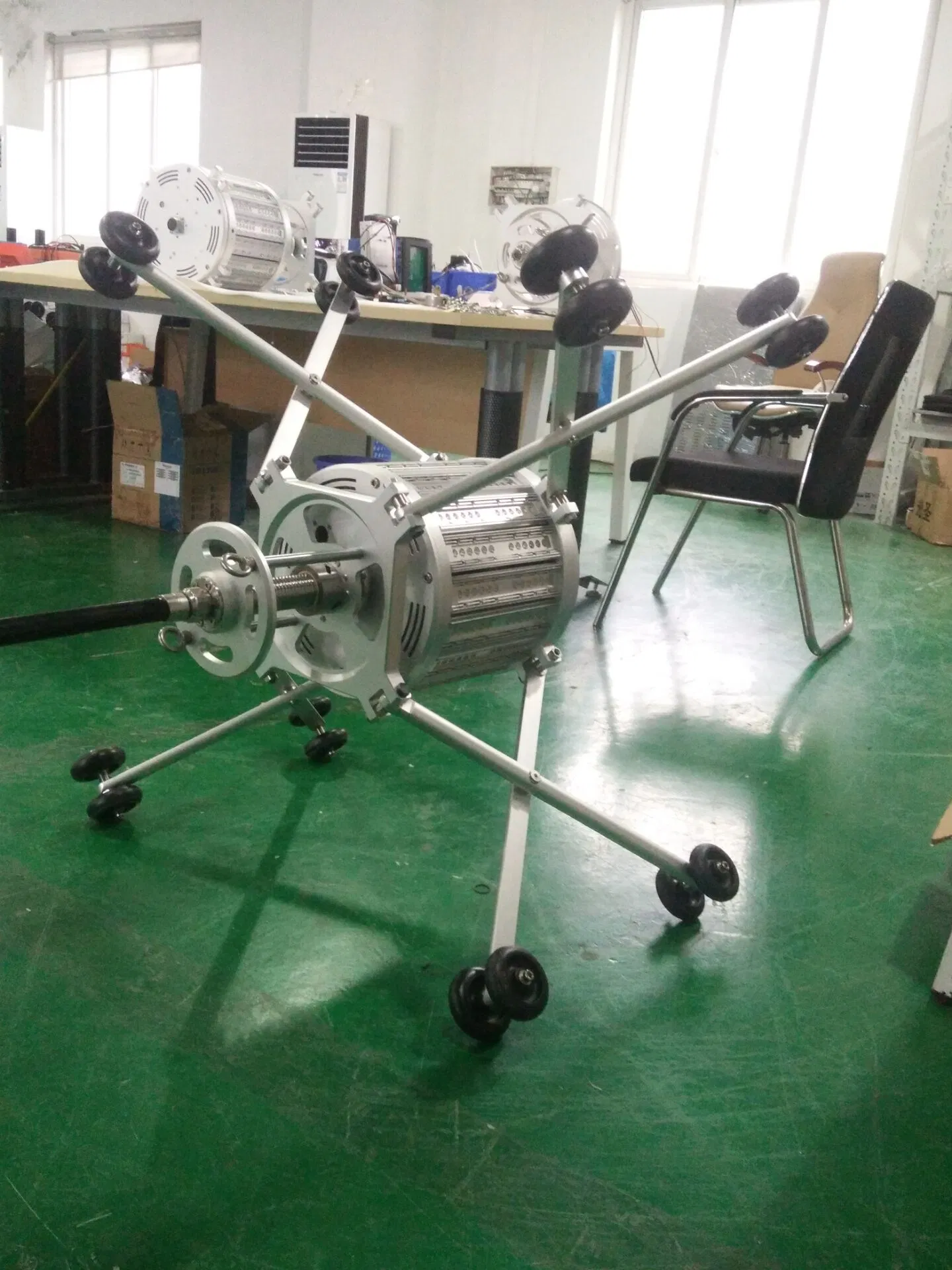

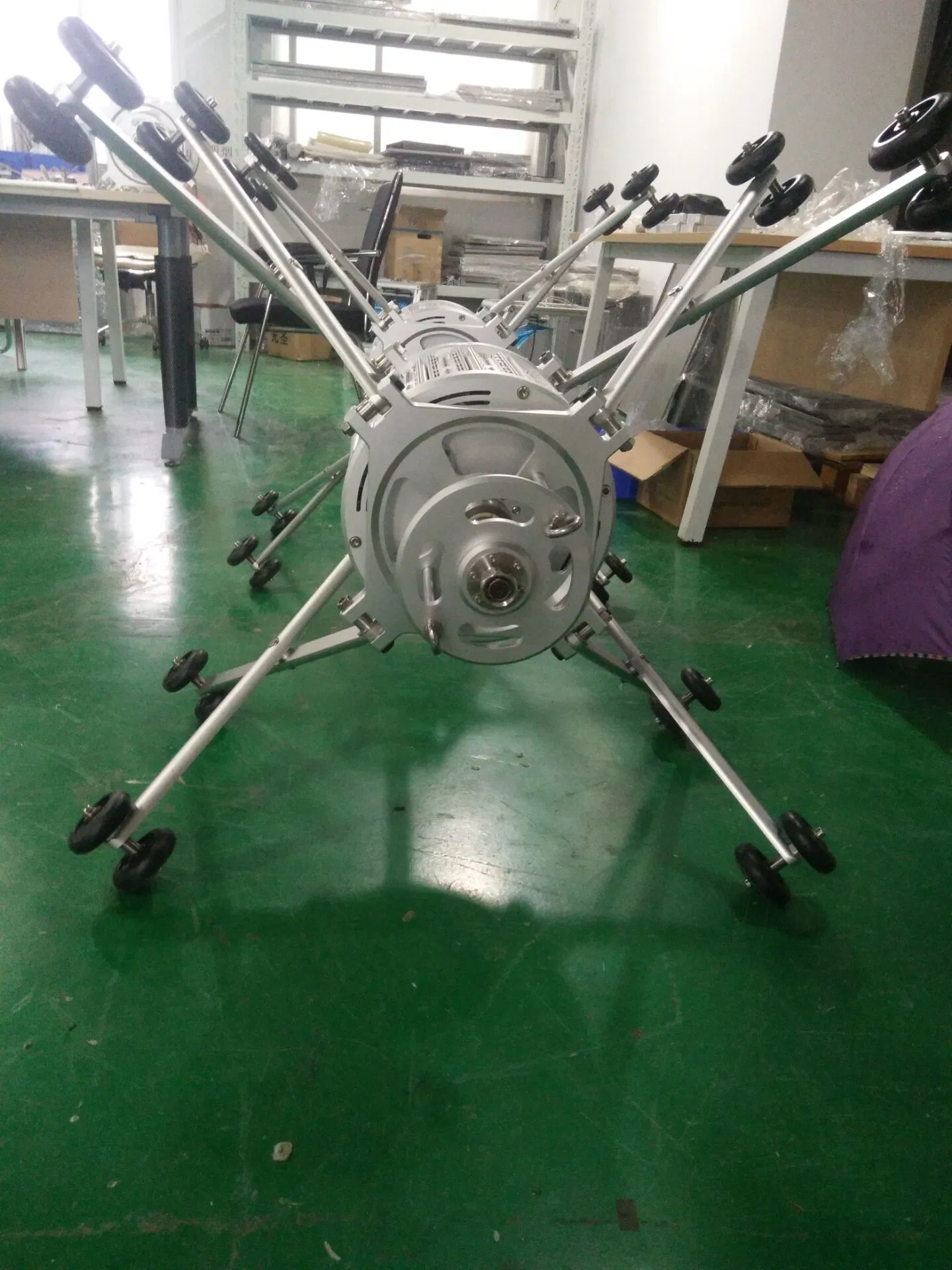

Large Lamp Holder	Section 2	DN600-DN1600 adaptive pipe diameter, LED light source, electric adjustment of diameter, integrated sensors.
Prick-head Sets	18 pcs	Stainless steel material, including sizes DN200-DN600 and DN800-DN1600 with sealing rings for stabilization.
Lens System	1 pc	IP68 protection, CMOS 4 million pixels, built-in air pressure sensor, 0.1Lux sensitivity.

Exhibitions & Packing

Our Services

After-service

Stable technology and outstanding professionals providing satisfactory returns.

Technical Help

Provision of pipeline detection, maintenance, and environmentally friendly solutions.

Warranty Policy

12-month warranty from arrival date with lifelong maintenance support.

Lifelong Service

Spare parts supplied at competitive prices for the entire product lifecycle.

Training

Operational Manual & CD in English; free professional technical training available.

FAQ (Frequently Asked Questions)

Q: What is the packaging standard for the equipment?

A: We use standard plywood packing cases with wood craft reinforcements. The machine is protected by foam and a thickening plastic bag for waterproof safety.

Q: Will the package be damaged during transportation?

A: Our packaging considers all damage factors to ensure safety. Our shipping agents are experienced in safe transportation to ensure you receive the parcel in good condition.

Q: How do I install and run the machine?

A: Most components are pre-installed. We provide detailed training videos and user manuals in English so customers can easily learn the operation.

Q: What should I do if the machine encounters a fault?

A: Contact our technical support immediately. We respond within 24 hours to help solve any operational or technical issues.

Q: Is training provided for new users?

A: Yes, we provide free training at our facility where professional technicians teach the correct way to operate the equipment.

Q: Do you support OEM orders?

A: Yes, OEM orders are welcome, and branding services can be provided on the products.
